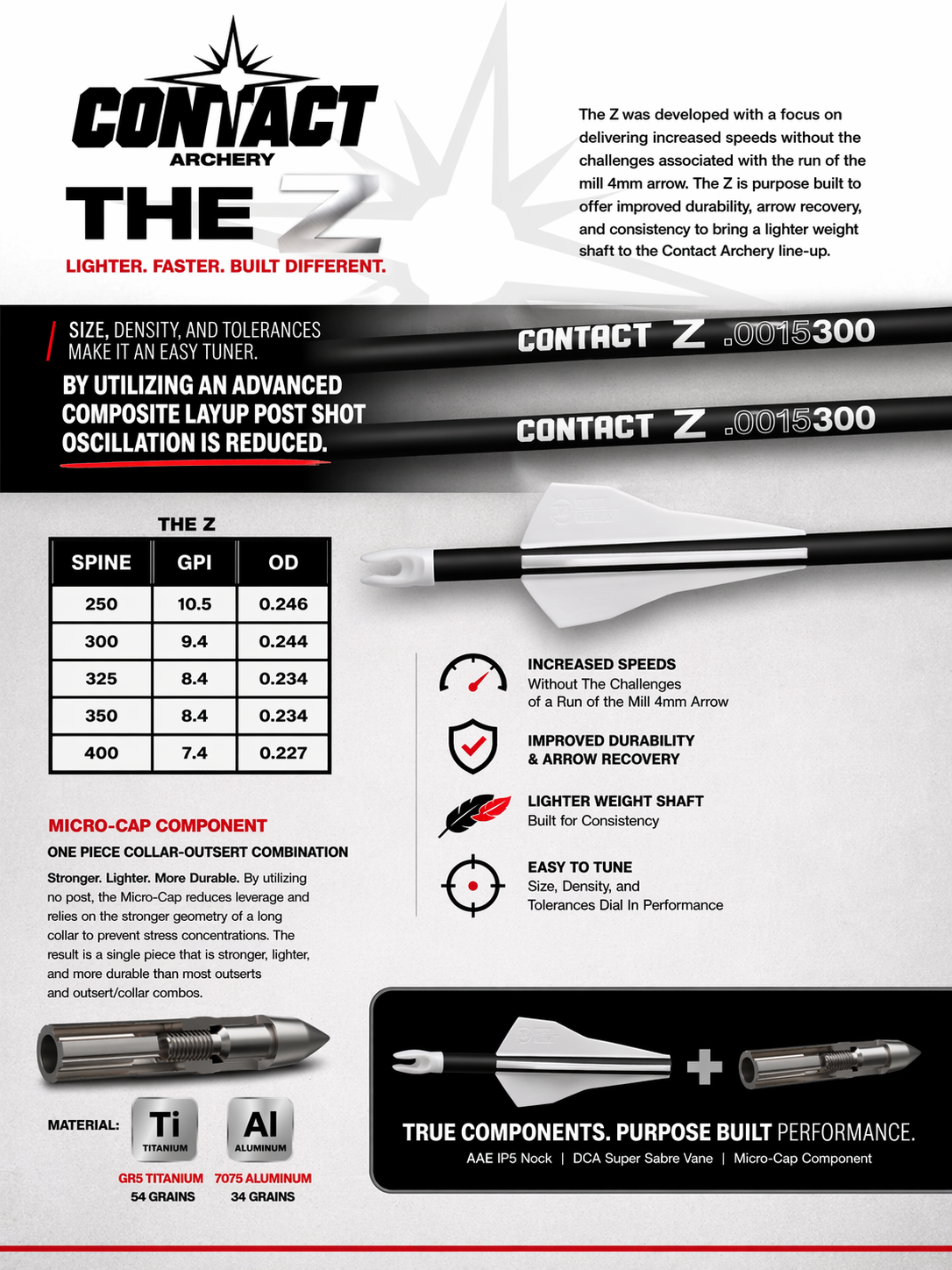

The Contact Archery Z was developed with a focus on delivering increased speeds without the challenges associated with the run of the mill 4mm arrow. The Z is purpose built to offer improved durability, arrow recovery, and consistency to bring a lighter weight shaft to the Contact Archery line-up.
The Z Specs
+/- .0015 straightness
32 inches uncut length
Solid one-piece Micro-Cap Component adapts micro diameter shafts (.166) to standard (8-32) points
Fits all .166/G nocks
Materials
The Z is a full-carbon shaft constructed with a blend of fibers. It brings decreased weight without sacrificing durability or forgiveness.
Component Details

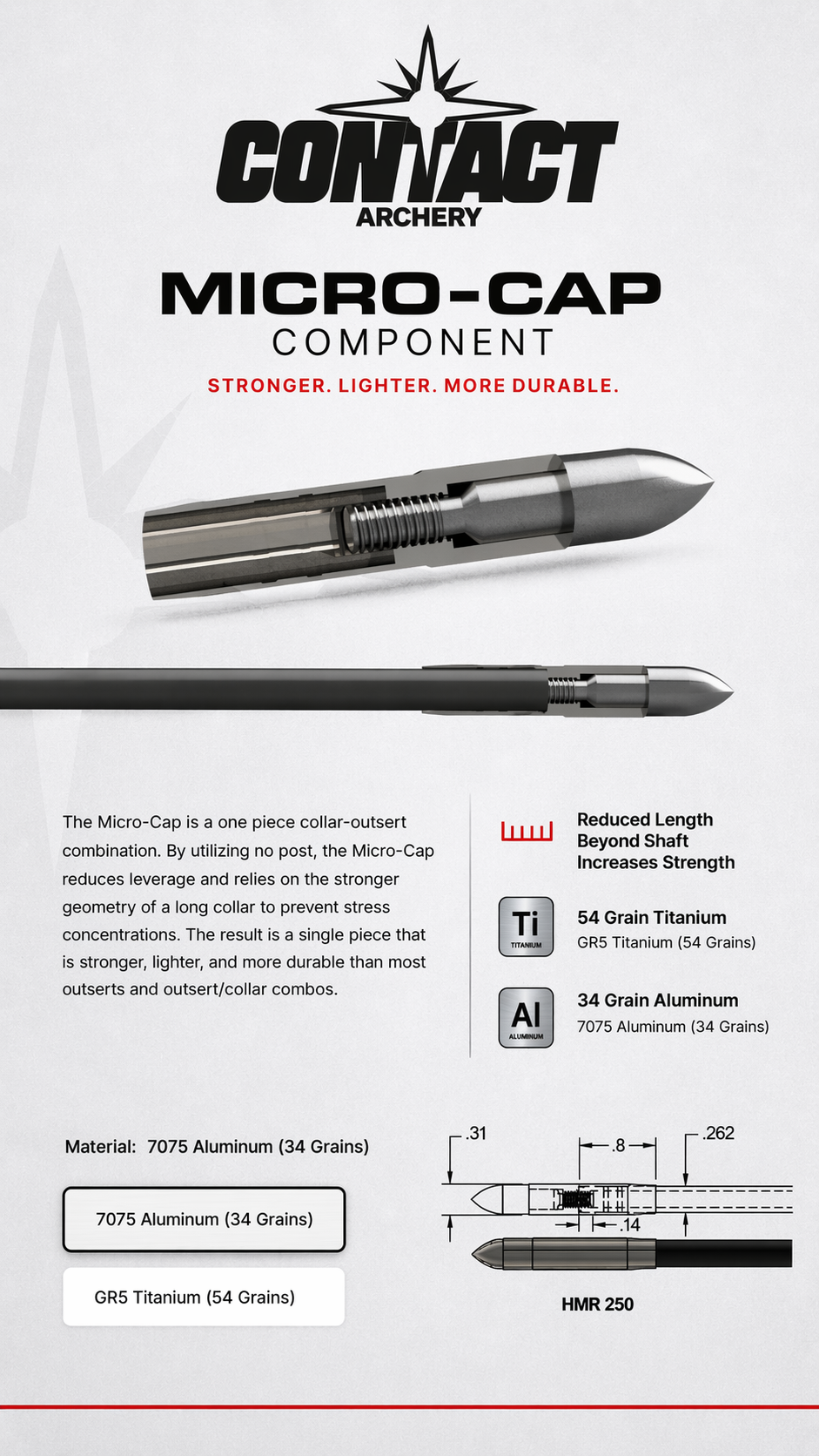

The Micro-Cap is a one piece outsert/collar hybrid. It covers the first .875 inches of the shaft and uses the larger diameter collar to provide increased durability over convention internal fit outserts. By passing the threads into the shaft leverage is also decreased resulting in an even stronger front end.
The titanium component (Grade 5) weighs 54 grains and the Aluminum (7075) weighs 34 grains.
All components receive standard 8-32 threaded points.
Flight And Ease Of Tune
The size, density, and tolerances of this shaft make it an easy tuner.
By utilizing an advanced composite layup post shot oscillation is reduced.
The Contact Archery Z was developed with a focus on delivering increased speeds without the challenges associated with the run of the mill 4mm arrow. The Z is purpose built to offer improved durability, arrow recovery, and consistency to bring a lighter weight shaft to the Contact Archery line-up.
The Z Specs
+/- .0015 straightness
32 inches uncut length
Solid one-piece Micro-Cap Component adapts micro diameter shafts (.166) to standard (8-32) points
Fits all .166/G nocks
Materials
The Z is a full-carbon shaft constructed with a blend of fibers. It brings decreased weight without sacrificing durability or forgiveness.
Component Details
The Micro-Cap is a one piece outsert/collar hybrid. It covers the first .875 inches of the shaft and uses the larger diameter collar to provide increased durability over convention internal fit outserts. By passing the threads into the shaft leverage is also decreased resulting in an even stronger front end.
The titanium component (Grade 5) weighs 54 grains and the Aluminum (7075) weighs 34 grains.
All components receive standard 8-32 threaded points.
Flight And Ease Of Tune
The size, density, and tolerances of this shaft make it an easy tuner.
By utilizing an advanced composite layup post shot oscillation is reduced.
